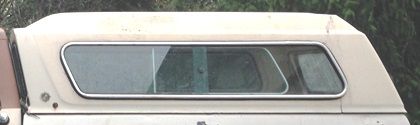

I bought the Truck Cap shortly after I bought my 79 Dodge 360 3/4-ton Club-Cab D200 pickup in 1983 at estate sale for $400 (another story) - I loved that truck, but after 33 years (almost 300k miles) I had to retire her. I found the cap in Ballard for $500 - owner bought new Truck and Cap and quickly totaled the truck - his loss my gain.
5/16/18
For 25+ years I’ve been using my tractor forks and a wood framework that slides under the canopy to lift it off and on the truck bed side walls. When not in use (sometimes years at a time) it would sit (out of the way) in the woods. Which meant that every time I wanted to use it, required a major cleaning of tree sap, moss and bird crap. Last year when I mounted the canopy, I noticed the wood frame was on its last legs.
Time for a change.
I have all the elements for a lift system on hand.
So the only cost will be my time (yea sure)
Whoops

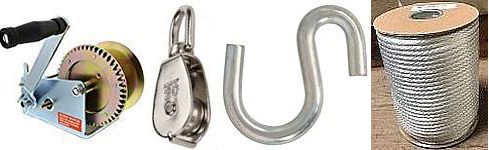

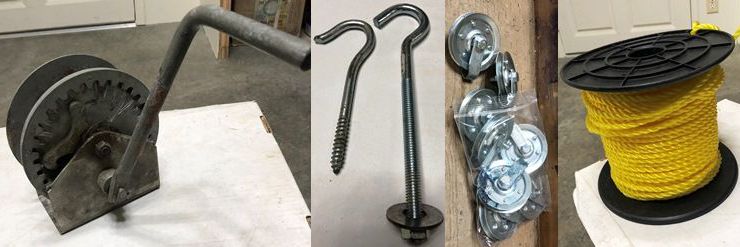

My garage sale winch turned out to be a single speed with 3 to 1 turn ratio. I figured the Truck Bed Cap to be 200 pounds (300 max), so even at 200/3 = 67# plus the turning point losses it would not be a comfortable lift. I bought a new 2500# rated 2 speed winch with 4:1 and 10:1 (advertised 10:1 actually 8:1). $33.81 Note: If you plan to replicate this lift, I strongly advise at least a 20:1 winch.
My eye bolts and lag hooks are good for far more weight than I will ever come close to putting on the system. The problem was installing them at the correct angle.
The pulleys I had were good for 200lbs ea. but without swivels were impossible to get lined up perfectly with the line run when hung on the hooks. I bought 10ea. 150# SS Lifting Crane Swivel Pulleys. $52.35 for 10
I thought the S-Hooks I had were rated at least 200# ea. (I’ve used them to repair chain and made over 500# pulls). But a little online research found max rated working load to be 35#. I will have great-grand-kids under this hanging dead weight so no corner cutting allowed. I bought 10ea. (only need 4 for this project) 1.5 inch S-Hooks rated at 129# ea. I tested one by lifting over 1,000 pounds with no sign of deformation. $10.64 for 4
More research quickly convinced me that ¼” Polypropylene line (even at ¼ the Cap weight) was just too marginal (especially 20 years in the future). I bought 1/4 inch solid braid nylon line (1100# working load). $20.00 for 100 feet

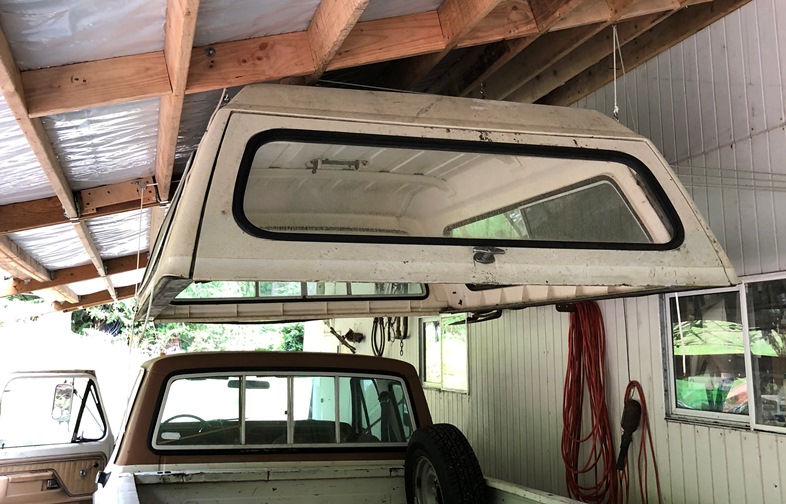

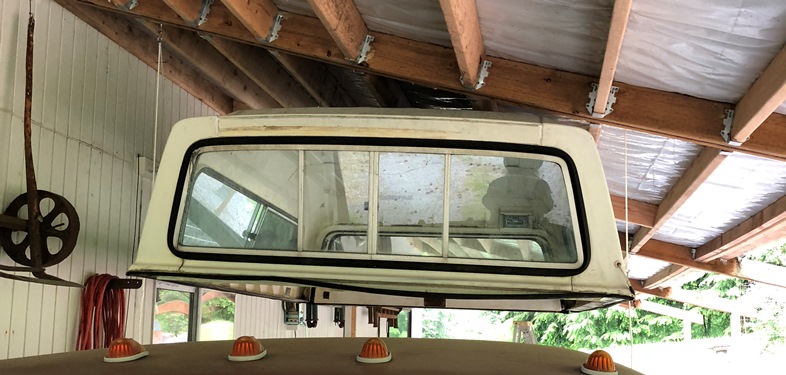

6/25/18: The Final Product ~ by Griz (aka Steve Stovner) ~
So instead of $0.00 out-of-pocket cost, I’m into this $116.80. But I like the result and feel real comfortable about anyone (including my great-grand-kids) being under My Hanging Cap.

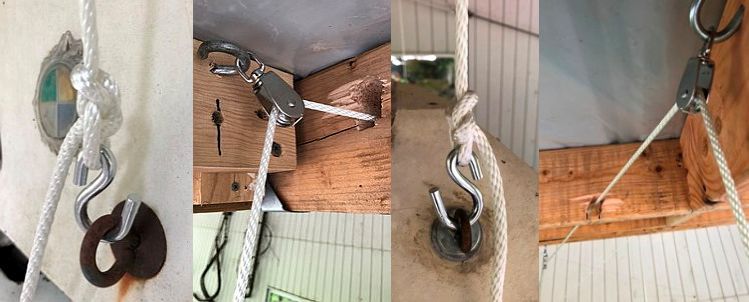

2 of 4 lifting points and blocks.

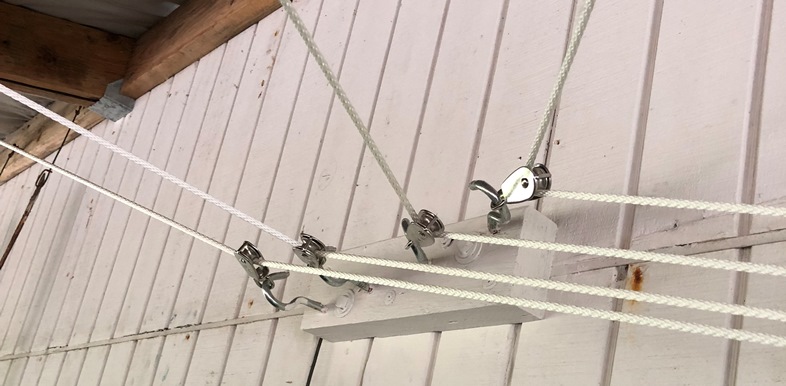

The block of wood the 3/8" Lag Hooks are screwed into is 3 sheets of Marine Ply (3/4" + 1/2" + 3/4") epoxied together and lagged to a 4x6 beam inside the wall.

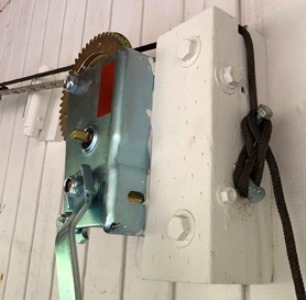

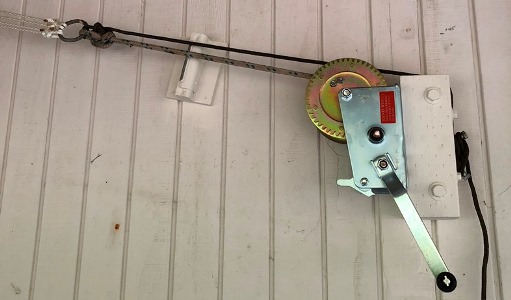

Winch is bolted to a Pressure Treated 4x4 which is lagged to a 6x6 post inside the wall. The rub rail is to help the line start the next course on the winch drum instead of piling up against the drum sidewall.
A safety line ensures that this puppy will not fall if the racket dog on a cheap winch decides to take some time off.
