Pump House Electrical

Electrical - 2012 ~ by Griz (aka Steve Stovner) ~
The building will be powered by a 10 gage 220vac underground line run from the old pump house. Until the trench is dug (planned for summer of 2013), I am using a overhead 12 gauge 120vac line that I strung from the light pole outlet across the driveway.

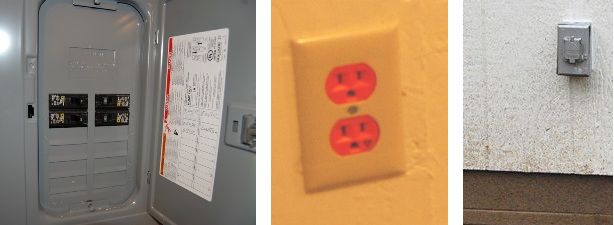

The breaker box is a sub-panel (without a "main" breaker). Currently (Nov 2012) it has 4 active circuits:

• 20amp - 2 West wall 120vac outlets,
• 20amp - 3 East wall 120vac outlets,
• 20amp - 1 weather tight 120vac outlet on the north exterior wall,
• 15amp - 120vac lighting,

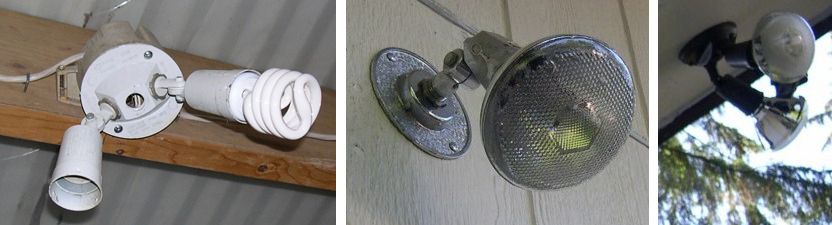

  • 2 interior ceiling light fixtures on switch by door,
  • Exterior flood light over the door controlled by switch inside the door,
  • Double flood security light with IR detector under the eve on North-West corner.

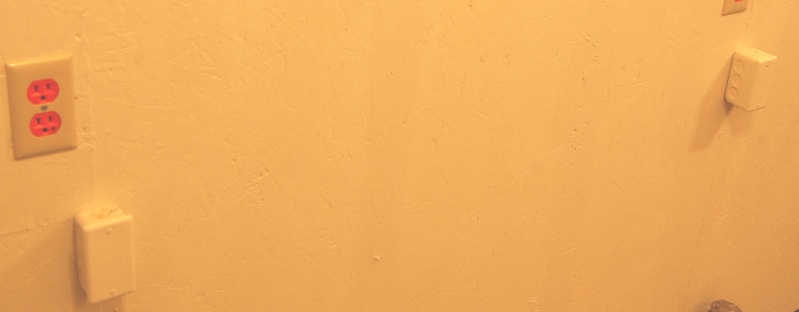

Four 220vac lines are run from the breaker box to covered steel termination boxes (2 each on east and west walls). As I need them I will add the appropriate size breaker and hook it up to the line of choice. Then I can run flex conduit from the termination box to the equipment I want to power (e.g. Pump)
